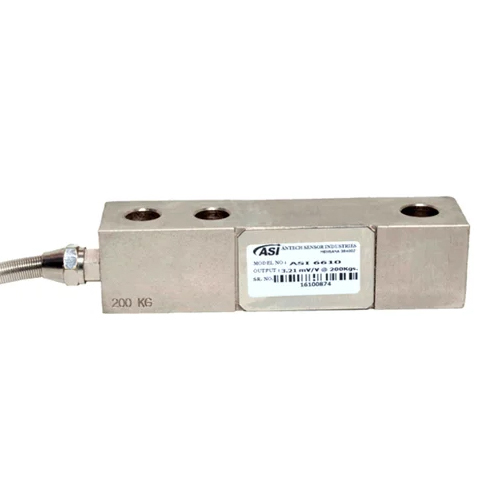

S Beam Load Cell

Get a Price/Quote

Product Details:

Operate Method Automatic
Color Silver
Material Metal
Application Industrial
Accuracy 100 %
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

S Beam Load Cell Price And Quantity

Minimum Order Quantity 10 Unit

S Beam Load Cell Product Specifications

Material Metal
Color Silver
Operate Method Automatic
Application Industrial
Accuracy 100 %

S Beam Load Cell Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

The S Beam Load Cell is a robust industrial tool made of metal in a sleek silver color, ensuring durability and reliability in various heavy-duty applications. With 100% accuracy and automatic operation method, this load cell delivers precise and consistent measurements, making it an essential component in industrial settings where accuracy is critical.

Technical SPECIFICATIONS

	S Beam Load Cell
Precision	C2/C3
Composition Error	0.03/0.02
Rated Output (mv/v)	3.0 0.2
Non-Linearity (%FS)	0.025
Hysteresis (%FS)	0.02
Repeatability (%FS)	0.02/0.01
Creep (%F.S /30min)	0.03/0.02
Zero Balance (%FS)	1.0
Input Resistance ()	400 10
Output Resistance ()	350 2
Insulation Resistance (M)	20000(50VDC)
Excitation Voltage (V)	5 ~15 (DC)
Compensated Temp. Range (C)	-10~+ 50
Use Temp. Range (C)	-20~+60
Temp. Effect On Zero (%FS/10C)	0.02
Temp. Effect On Span (%FS/10C)	0.02
Safe Overload (%FS)	150
Ultimate Overload (%FS)	250
Defend Grade	IP67
Cable	5 mtr

FAQs of S Beam Load Cell:

Q: What material is the S Beam Load Cell made of?

A: The S Beam Load Cell is made of metal.

Q: What is the color of the S Beam Load Cell?

A: The S Beam Load Cell comes in a silver color.

Q: What is the application of the S Beam Load Cell?

A: The S Beam Load Cell is suitable for industrial applications.

Q: What is the accuracy level of the S Beam Load Cell?

A: The S Beam Load Cell offers 100% accuracy.

Q: What is the operate method of the S Beam Load Cell?

A: The S Beam Load Cell operates automatically.
